Traditional Center Tip
Equivalent to a traditional RTD, this probe style reaches the center of the pipe and aggregates
the temperature along its rugged 1/8"(3mm) diameter tip.
Available in different lenghts to reach the center line of any pipe.
|
For 1.5"(38mm) Pipe: For 2.0"(50mm) Pipe: Custom Pipe Size: Dual Element RTD: Type-T Thermocouple: |
KST-R15R KST-R20R KST-RxxR KST-RxxR2 KST-RxxT |
|
|

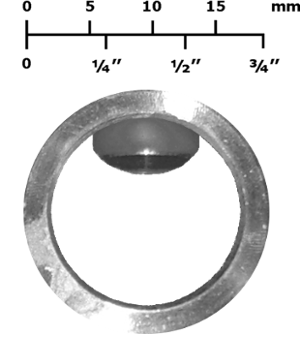

Low Profile Tip
Provides accurate in-line temperature measurement with minimal obstruction of the product flow.
Also measures at the edge of the flow, near the pipe wall. This is not possible to do accurately with
traditional RTDs and thermocopuples that require a minimum immersion depth.
|
single RTD: Dual Element RTD: Type-T Thermocouple: |
KST-R00R KST-R00R2 KST-R00T |
|
|
|
|
Multi-Point Tip
Equipped with multiple type-T thermocouples along its length, this probe is able to
measure at several radial locations simultaneously to create a thermal profile and
identify the critical hot and cold spots.
Constructed from an ultra-thin 0.058"(1.5mm) diameter tubing, the tip is swept away from the product flow
to minimize product fouling, maximize the separation of adjacent measurement points, and increase tip strength.
Available in different lengths and thermocouple locations for any application.
|
3 tc's in 1.5"(38mm) pipe: 3 tc's in custom size pipe: custom number of tc's:
|
KS3-R15T KS3-RxxT KSy-RxxT |
|
|
|
|
Point Reach Tip
Constructed from an ultra-thin walled stainless steel tube, this probe type is able to measure at a specific
radial location in the process flow with minimal stem conduction effects to impact the reading accuracy.
Available in Single and Dual element RTD configurations.
|
For 1.5"(38mm) Pipe: For 2.0"(50mm) Pipe: Custom Pipe Size: Dual Element RTD: Type-T Thermocouple: |
KSN-R15R KSN-R20R KSN-RxxR KSN-RxxR2 KSN-RxxT |
|
|
Small Bore Sensor
Suitable for use in process pipe IDs down to 0.550"(14mm). Ideal for use in pilot plant
or lab-scale equipment where traditional RTDs and thermowells can introduce excessive flow
obstruction or product damage.
This sensor has been tested for leak-free operation up to 3,000 PSIg (200 Bar).
|
single RTD: Dual Element RTD: Type-T Thermocouple: |
KST-M00R KST-M00R2 KST-M00T |
|
|
|
|
Product Tray Insertion
Using the same ultra-thin probe construction as the Keyhole™ Multi-point Tip,
this probe is designed to be inserted in to a packaged food tray to measure the
temperature distribution within the product once packaged.
Available in different lengths and thermocouple locations for any application.
|
|
|
Custom Designs
Because our sensors are frequently used to solve measurement problems traditional RTDs and Thermocouples are
unable to do, we regularly get asked for custom tip designs or multi-element configurations.
|
|
|
