Traditional Instrument Tee
Equivalent to a traditional RTD instrument tee. Shown here with Tri-Clamp flanges
Constructed from 316 Stainless and available with a variety of coupling types or butt-weld ends for welding.
|
Tri-Clamp 1.5"(38mm) Pipe: TriClamp 2.0"(50mm) Pipe: Custom Pipe Size: Butt-Weld ends: |
KFT-R15T KFT-R20T KFT-RxxT KFT-RxxW |
|
|
Multi-Port Measurement Hub
Allows multiple Keyhole™ probes to be inserted at a single location for multiple concurrent measurements.
Shown here with 3 ports equally spaced at 120 o and Tri-Clamp flanges.
Constructed from 316 Stainless and available with a variety of coupling types and port configurations.
|
3 Ports on 2.0"(50mm) pipe: 2 Ports on custom pipe: |
KF3-R20T KF2-RxxT |
|
|
Flex-Fit Pipe Attachment
Ideal for quick retrofit to existing processes, the Flex-Fit pipe fitting clamps
around a pipe drilled with a small access hole. Flex-Fit has the same sanitary
performance as other Keyhole™ Fittings.
This fitting is particularly suitable for use in all-welded pipeline systems.
|
For 1.5"(38mm) Pipe: For 2.0"(50mm) Pipe: Custom Pipe Size: |
KFF-R15 KFF-R20 KFF-Rxx |
|
|
Hybrid Fitting
Ideal for creating combination measurement points to combine the advantages of Keyhole™
temperature measurements with conventional off-the-shelf sensors for Pressure, Conductivity, PH, etc.
Having 2 independent sensors in the same physical location gives best-in-class measurement
capability and reduced replacement costs should one sensor fail or be damaged.
|
For 1.5"(38mm) Pipe: For 2.0"(50mm) Pipe: Custom Pipe Size: |
KFH-R15T KFH-R20T KFH-RxxT |
|
|

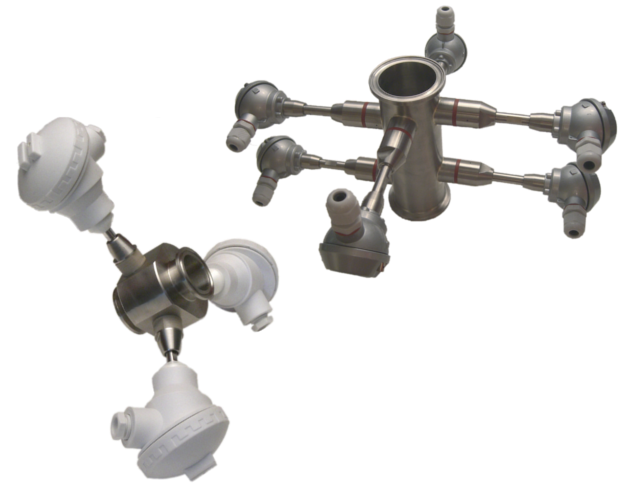

Custom Designs
Because our sensors are frequently used to solve measurement problems traditional RTDs and Thermocouples are
unable to do, we regularly get asked for custom fittings to fit unique pipe dimensions, end couplings, and multi-port
configurations. We have access to world class machining capability to satisfy even the most imaginative requests.
|
|
|
